movec (Auto Mode)

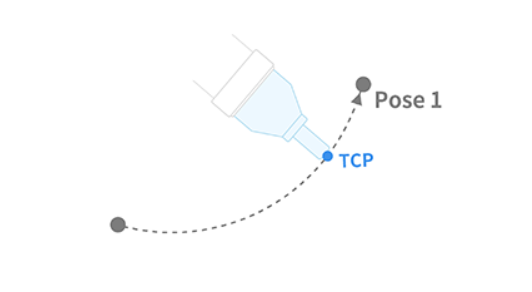

This is a function for moving the robot along an arc to the target position via a waypoint or to a specified angle from the current position based on the task space in the task space. This function is available only when ``DRCF_VERSION == 2``.

Definition
DRFLEx.h within class CDRFLEx, public section (line 780)

bool movec(float fTargetPos[2][NUM_TASK],
           float fTargetVel[2],
           float fTargetAcc[2],
           float fTargetTime = 0.f,
           MOVE_MODE eMoveMode = MOVE_MODE_ABSOLUTE,
           MOVE_REFERENCE eMoveReference = MOVE_REFERENCE_BASE,
           float fTargetAngle1 = 0.f,
           float fTargetAngle2 = 0.f,
           float fBlendingRadius = 0.f,
           BLENDING_SPEED_TYPE eBlendingType = BLENDING_SPEED_TYPE_DUPLICATE,
           MOVE_ORIENTATION eOrientation = DR_MV_ORI_TEACH,
           DR_MV_APP eAppType = DR_MV_APP_NONE) {
    return _movec_ex(_rbtCtrl, fTargetPos, fTargetVel, fTargetAcc, fTargetTime,
                     eMoveMode, eMoveReference, fTargetAngle1, fTargetAngle2,
                     fBlendingRadius, eBlendingType, eOrientation, eAppType);
};

Parameter

Parameter Name	Data Type	Default Value	Description
fTargetPos[0]	float[6]		Waypoint
fTargetPos[1]	float[6]		Target location
fTargetVel	float[2]		Linear Velocity, Angular Velocity
fTargetAcc	float[2]		Linear Acceleration, Angular Acceleration
fTargetTime	float	0.0	Reach Time [sec]
eMoveMode	MOVE_MODE	MOVE_MODE_ABSOLUTE	Refer to the Definition of Constant and Enumeration Type
eMoveReference	MOVE_REFERENCE	MOVE_REFERENCE_BASE	Refer to the Definition of Constant and Enumeration Type
fTargetAngle1	float	0.0	angle1
fTargetAngle2	float	0.0	angle2
fBlendingRadius	float	0.0	Radius for blending
eBlendingType	BLENDING_SPEED_TYPE	BLENDING_SPEED_TYPE_DUPLICATE	Refer to the Definition of Constant and Enumeration Type
eOrientation	MOVE_ORIENTATION	DR_MV_ORI_TEACH	Orientation control option of the tool
eAppType	DR_MV_APP	DR_MV_APP_NONE	Application hint for motion (if supported by controller)

Note

• If an argument is inputted to fTargetVel (e.g., {30, 0}), the input corresponds to the linear velocity of the motion, while the angular velocity is determined proportionally to the linear velocity.

• If an argument is inputted to fTargetAcc (e.g., {60, 0}), the input corresponds to the linear acceleration of the motion, while the angular acceleration is determined proportionally to the linear acceleration.

• If fTargetTime is specified, values are processed based on fTargetTime, ignoring fTargetVel and fTargetAcc.

• If the eMoveMode is MOVE_MODE_RELATIVE, fTargetPos[0] and fTargetPos[1] are defined in the relative coordinate system of the previous position. (fTargetPos[0] is the relative coordinate from the starting point, while fTargetPos[1] is the relative coordinate from fTargetPos[0].)

• If fTargetAngle1 is more than 0 and fTargetAngle2 is equal to 0, the total rotated angle on the circular path is applied to fTargetAngle1.

• When fTargetAngle1 and fTargetAngle2 are more than 2, fTargetAngle1 refers to the total rotating angle moving at a constant velocity on the circular path, while fTargetAngle2 refers to the rotating angle in the rotating section for acceleration and deceleration. In that case, the total moving angle fTargetAngle1 + 2 × fTargetAngle2 moves along the circular path.






Caution

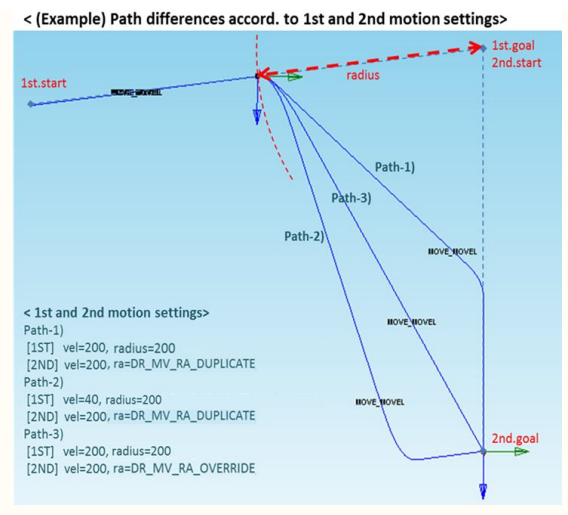

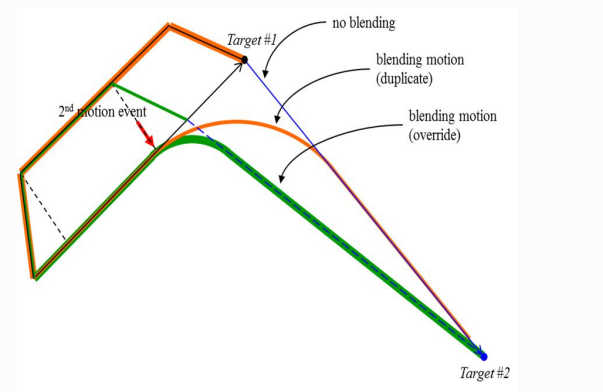

If the following motion is blended with the conditions of eBlendingType being BLENDING_SPEED_TYPE_DUPLICATE and fBlendingRadius > 0, the preceding motion can be terminated after the following motion is terminated first when the remaining motion time (determined by remaining distance, velocity, and acceleration of the preceding motion) is greater than the motion time of the following motion. Refer to the following image for more information.

Return

Value	Description
0	Error
1	Success

Example

// CASE 1
float x1[2][6] = { {559,434.5,651.5,0,180,0}, {559,434.5,251.5,0,180,0} };
float tvel  = {50, 50};   // Set the task velocity to 50 (mm/sec, deg/sec).
float tacc  = {100, 100}; // Set the task acceleration to 100 (mm/sec2, deg/sec2).
drfl.movec(x1, tvel, tacc);
// Moves to x1[1] with a velocity of 50 and acceleration of 100 via x1[0] along the arc trajectory.

// CASE 2
float x1r[2][6] = { {559,434.5,651.5,0,180,0}, {559,434.5,251.5,0,180,0} };
float ttime = 5.f;
drfl.movec(x1r, 0, 0, ttime);
// Moves along the arc trajectory to x1r[1] via x1r[0] with a reach time of 5 seconds.

// CASE 3
float x1b[2][6] = { {559,434.5,651.5,0,180,0}, {559,434.5,251.5,0,180,0} };
float x2b[2][6] = { {559,234.5,651.5,0,180,0}, {559,234.5,451.5,0,180,0} };
float tvelb[2] = {50, 50};
float taccb[2] = {100, 100};
float blending_radius = 50;
drfl.movec(x1b, tvelb, taccb, 0, MOVE_MODE_ABSOLUTE, MOVE_REFERENCE_BASE, 0, 0, blending_radius);
drfl.movec(x2b, tvelb, taccb, 0, MOVE_MODE_ABSOLUTE, MOVE_REFERENCE_BASE, 0, 0, 0, BLENDING_SPEED_TYPE_DUPLICATE);
// Two consecutive arc segments are executed; the first uses a 50 mm blend radius, the second uses DUPLICATE blending.

These examples show arc motion via a waypoint, time-based arc motion, and consecutive arcs with blending. Use fBlendingRadius and eBlendingType to control how adjacent arc segments are connected smoothly.
