6.6.2 minimal_rt_monitoring_sample.cpp

This example (2_minimal_rt_monitoring_sample.cpp) shows a minimal realtime monitoring setup using the DRFLEx API:

open the realtime (RT) monitoring channel with connect_rt_control(),
configure the RT session with set_rt_control_input(),
register an RT monitoring callback (set_on_rt_monitoring_data),
and start/stop RT monitoring with simple console input.

Caution

Realtime monitoring and control are supported only on a real robot system. The sample sets IP_ADDRESS to 127.0.0.1; set it to the IP address of the real controller (for example 192.168.137.100) before running it.

This example is located in the following path:
API-DRFL/example/Linux_64/2_minimal_rt_monitoring_sample.cpp

See the example on the Doosan Robotics API-DRFL GitHub.

Overview & Global Configuration

The sample starts by selecting the DRCF protocol version and creating a global DRFLEx instance.

The sample defines DRCF_VERSION as 2 on its first line. Edit that line to match the controller, or delete it and pass -DDRCF_VERSION=2 or -DDRCF_VERSION=3 to the compiler; while the line is present, it overrides the compiler option.

#define DRCF_VERSION 2 // Set 2 or 3 according to drcf version.

#include "../../include/DRFLEx.h"

#include <cstring>
#include <iostream>
#include <thread>

using namespace DRAFramework;
// ...
const std::string IP_ADDRESS = "127.0.0.1";
CDRFLEx robot; // Instance for APIs

bool get_control_access = false; // Variable to check control authority
bool is_standby = false; // Variable to check whether the robot state is standby.

#define GREEN  "\033[1;32m"
#define CYAN   "\033[1;36m"

DRCF_VERSION: must match the controller firmware (e.g. 2 or 3).
IP_ADDRESS: set to 127.0.0.1 in the sample. Replace it with the IP address of the real controller.
Color macros (GREEN, CYAN) are used to print colored output in the terminal.

Realtime Connection Setup

The main function first opens the realtime monitoring connection.

int main(){
    // Connect to the drcf cotnroller.
    bool ret = robot.connect_rt_control(IP_ADDRESS);
    std::cout << "open connection return value " << ret << std::endl;
    if (true != ret) {
        std::cout << "Cannot open connection to robot @ " << IP_ADDRESS
                        << std::endl;
        return 1;
    }
    // For rt - monitoring, we don't need to have "Getting control access".
    // however, for rt-writing like servoj_rt, we still need to have "control access" and "state standby".

connect_rt_control(IP_ADDRESS) opens the UDP realtime channel to the controller.
If the connection fails (e.g. wrong IP, no real controller), the program prints an error and exits.
RT monitoring only (read-only) does not require control authority.
RT writing (e.g. servoj_rt, torque commands) does not require control authority either, but the robot must be in STATE_STANDBY or STATE_MOVING. The comment in the sample that says RT writing needs control access is outdated.

RT Monitoring Callback

The example registers a lambda callback to receive realtime state data.

robot.set_on_rt_monitoring_data([](LPRT_OUTPUT_DATA_LIST data)->void{
    if (!data) return;
    auto ms = std::chrono::duration_cast<std::chrono::milliseconds>(std::chrono::system_clock::now().time_since_epoch()).count();
    printf(GREEN "[%.3f] === Robot State ===\n", ms / 1000.0);
    printf(CYAN "Joint Position: ");
    for (int i = 0; i < 6; ++i) {
        printf("%.3f%s", data->actual_joint_position[i], (i < 5) ? ", " : "\n");
    }
    printf(CYAN "Joint Velocity: ");
    for (int i = 0; i < 6; ++i) {
        printf("%.3f%s", data->actual_joint_velocity[i], (i < 5) ? ", " : "\n");
    }
    printf(CYAN "Joint Torque: ");
    for (int i = 0; i < 6; ++i) {
        printf("%.3f%s", data->actual_joint_torque[i], (i < 5) ? ", " : "\n");
    }
    printf(CYAN "Gravity Torque: ");
    for (int i = 0; i < 6; ++i) {
        printf("%.3f%s", data->gravity_torque[i], (i < 5) ? ", " : "\n");
    }
    // Pretty matrix printer
    auto print_matrix = [](const char* name, float mat[6][6]) {
        printf(CYAN "%s:\n", name);
        for (int i = 0; i < 6; ++i) {
            printf(CYAN "  [");
            for (int j = 0; j < 6; ++j) {
                printf(CYAN "%7.3f%s", mat[i][j], (j < 5) ? ", " : "");
            }
            printf(CYAN "]\n");
        }
    };
    print_matrix(CYAN "Jacobian Matrix", data->jacobian_matrix);
    print_matrix(CYAN "Mass Matrix", data->mass_matrix);
    print_matrix(CYAN "Coriolis Matrix", data->coriolis_matrix);

});

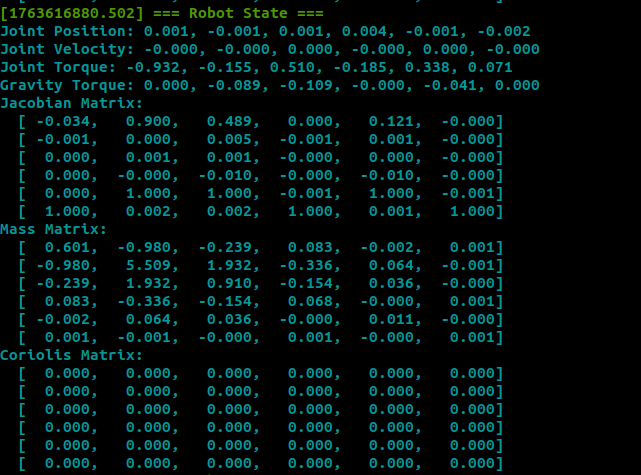

The callback returns immediately when data is null. Otherwise it prints a timestamp based on the local system clock, joint positions, joint velocities, joint torques, gravity torques, and dynamic matrices (Jacobian, Mass, Coriolis).

RT Session Configuration & Start

After registering the callback, the sample configures the RT session with set_rt_control_input(), waits for Enter, calls start_rt_control(), waits for Enter again and calls disconnect_rt_control().

string version = "v1.0";
// float period = 0.002;
float hz = 100.0f;
int losscount = 4;
std::cout << "RT Result " << robot.set_rt_control_input(version, hz, losscount) << std::endl;

std::cout << "Press Enter to continue..." ;
std::cin.get();  // Waits for user to press Enter
robot.start_rt_control();

std::cout << "Press Enter to terminate..." ;
std::cin.get();  // Waits for user to press Enter
robot.disconnect_rt_control();
return 0;

RT Output

Before starting the RT session, the program calls set_rt_control_input().

string version = "v1.0";
// float period = 0.002;
float hz = 100.0f;
int losscount = 4;
std::cout << "RT Result " << robot.set_rt_control_input(version, hz, losscount) << std::endl;

version = "v1.0": selects the RT protocol version.
hz = 100.0f: passed as the fPeriod argument, the communication period in seconds.
losscount = 4: passed as the nLossCnt argument, the allowed consecutive loss count.

See set_rt_control_input for the parameters. The return value is printed to the console. It reports only that the configuration was sent, not that the controller accepted it.

Start & Stop RT Monitoring

The example uses simple Enter key prompts to start and stop RT monitoring.

std::cout << "Press Enter to continue..." ;
std::cin.get();  // Waits for user to press Enter
robot.start_rt_control();

std::cout << "Press Enter to terminate..." ;
std::cin.get();  // Waits for user to press Enter
robot.disconnect_rt_control();
return 0;

After the first Enter, the sample calls start_rt_control().
After the second Enter, disconnect_rt_control() closes the realtime monitoring channel and the program exits.
