1.2.1 API Layer Architecture

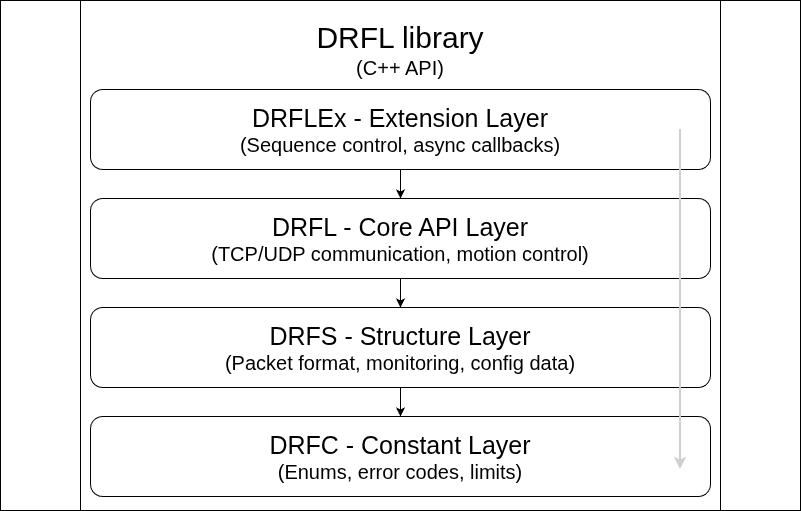

The API Layer of the Doosan Robotics Framework Library (DRFL) is composed of four hierarchical header files: DRFC, DRFS, DRFL, and DRFLEx.
These headers define all constants, data structures, core APIs, and extended functionalities required for robot control and communication between the user application and the controller.
Note
As of v1.33.2, DRFL.h has been merged into DRFLEx.h. DRFL.h remains as a thin wrapper that includes DRFLEx.h. New development should use DRFLEx.h only.
DRFC.h
Constant Layer
Defines all global constants, enumerations, and macros used across the API. This includes motion types, robot states, I/O modes, and safety levels. It serves as the foundational definition file referenced by all higher layers.
DRFS.h
Structure Layer
Declares all data structures exchanged between the API and the robot controller.
It includes monitoring data (ROBOT_MONITORING_DATA_EX), configuration structures
such as CONFIG_TOOL and CONFIG_SAFETY_ZONE, as well as position and joint representations.
This file ensures consistent data formatting and interoperability across all robot models.
DRFL.h
Core API Layer
Provides the main interface functions exposed to users, including motion commands (movej(), movel()),
I/O operations (set_digital_output()), and system controls (start_robot(), manage_access_control()).
It references constants and structures defined in DRFC and DRFS to process requests and communicate with the robot controller.
DRFLEx.h
Extension Layer
Offers extended and high-level APIs built upon DRFL.
This layer supports advanced capabilities such as motion blending, asynchronous callbacks, and sequence automation,
enabling developers to create complex and user-friendly robotic applications.
CDRFLEx object
Do not copy a CDRFLEx object. Pass it by reference or pointer, and use one object per robot connection.
A CDRFLEx object does not support concurrent calls. Make the calls on one object one at a time, including calls made from callbacks.
get_current_posx, get_desired_posx, fkin, ikin (4 arguments), ikin_norm, trans, coord_transform, calc_coord, get_user_home, get_user_cart_coord and flange_serial_read return a pointer to storage in the CDRFLEx object that other DRFL calls and every reconnect reuse; copy the structure before making another DRFL call. The 3-argument ikin is the exception: it returns a pointer to one ROBOT_POSE shared by all CDRFLEx objects in the process, which the next 3-argument ikin call on any object overwrites. Except for get_user_home, which returns NULL if the request cannot be sent, the pointer is never NULL; do not use a NULL check to detect failure.
