cuMotion Integration

Overview

cuMotion provides GPU-accelerated motion planning for Doosan robots by integrating NVIDIA Isaac ROS with MoveIt 2 and the ROS 2 control stack.

This tutorial describes how to set up the full software environment and execute the cuMotion-based motion planning pipeline.

Note

This tutorial is based on the following validated environment:

Isaac ROS: Release 3.2
NVIDIA Driver: 570
CUDA: 12.8 (Docker base: 12.6)
ROS 2: Humble

System Prerequisites

Before configuring cuMotion, you must complete the official Isaac ROS base setup provided by NVIDIA. Only after completing the guide below, proceed with the Doosan + cuMotion integration steps described below. : Official Isaac ros setup guide

Note

In official setup guide, you must complete both steps:

Compute setup
Developer Environment Setup

Warning

Installing 560 drivers may cause compatibility issues with GPU-accelerated Docker containers due to driver/runtime mismatches. It is recommended to use the latest stable driver version (e.g., 570 series) to ensure compatibility with Isaac ROS and cuMotion.

Workspace Setup

This section describes the process of creating separate and independent workspaces for the NVIDIA Isaac ROS cuMotion stack and the Doosan ROS 2 robot control stack. By isolating these two environments, the system maintains a clean separation between GPU-accelerated core motion planning (Isaac ROS + cuMotion) and vendor-specific robot hardware control (Doosan ROS 2).

Isaac ROS Workspace

mkdir -p ~/workspaces/isaac_ros-dev/src
echo 'export ISAAC_ROS_WS="${HOME}/workspaces/isaac_ros-dev/"' >> ~/.bashrc
source ~/.bashrc
cd ~/workspaces/isaac_ros-dev/src

git clone --recursive -b release-3.2 https://github.com/NVIDIA-ISAAC-ROS/isaac_ros_common.git
git clone --recursive -b release-3.2 https://github.com/NVIDIA-ISAAC-ROS/isaac_ros_cumotion.git

Doosan ROS 2 + cuMotion Workspace

mkdir -p ~/ros2_ws/src
cd ~/ros2_ws/src

git clone -b humble https://github.com/DoosanRobotics/doosan-robot2.git
git clone -b humble https://github.com/DoosanRobotics/doosanrobotics_cumotion_driver

Container Execution

This step initializes and launches the Docker-based runtime environments required for the full cuMotion and Doosan ROS 2 integration. The startup-doosan.sh script prepares the Doosan cuMotion Docker environment by configuring the build context, applying required settings, and starting the Doosan-specific container for robot control and execution.

Next, the run_dev.sh script launches the NVIDIA Isaac ROS development container, which provides the GPU-accelerated runtime environment for cuMotion and motion planning.

Command

Doosan cuMotion Docker Startup

cd ~/ros2_ws/src/cumotion/dsr_cumotion/docker
chmod +x startup-doosan.sh
./startup-doosan.sh

cd ~/workspaces/isaac_ros-dev/src/isaac_ros_common/scripts
./run_dev.sh

Warning

The Docker build may fail at the Mosquitto installation step in Dockerfile.x86_64 (around line 194). This is a known issue caused by Ubuntu release information changes during apt-get update. To resolve this, update the Mosquitto installation step as follows:

RUN --mount=type=cache,target=/var/cache/apt \
      apt-add-repository ppa:mosquitto-dev/mosquitto-ppa \
      && apt-get update --allow-releaseinfo-change \
      && apt-get install -y \
         mosquitto \
         mosquitto-clients

Environment Setup

source /opt/ros/humble/setup.bash
source /workspaces/isaac_ros-dev/install/setup.bash
source /workspaces/ros2_ws/install/setup.bash

cuMotion Launch

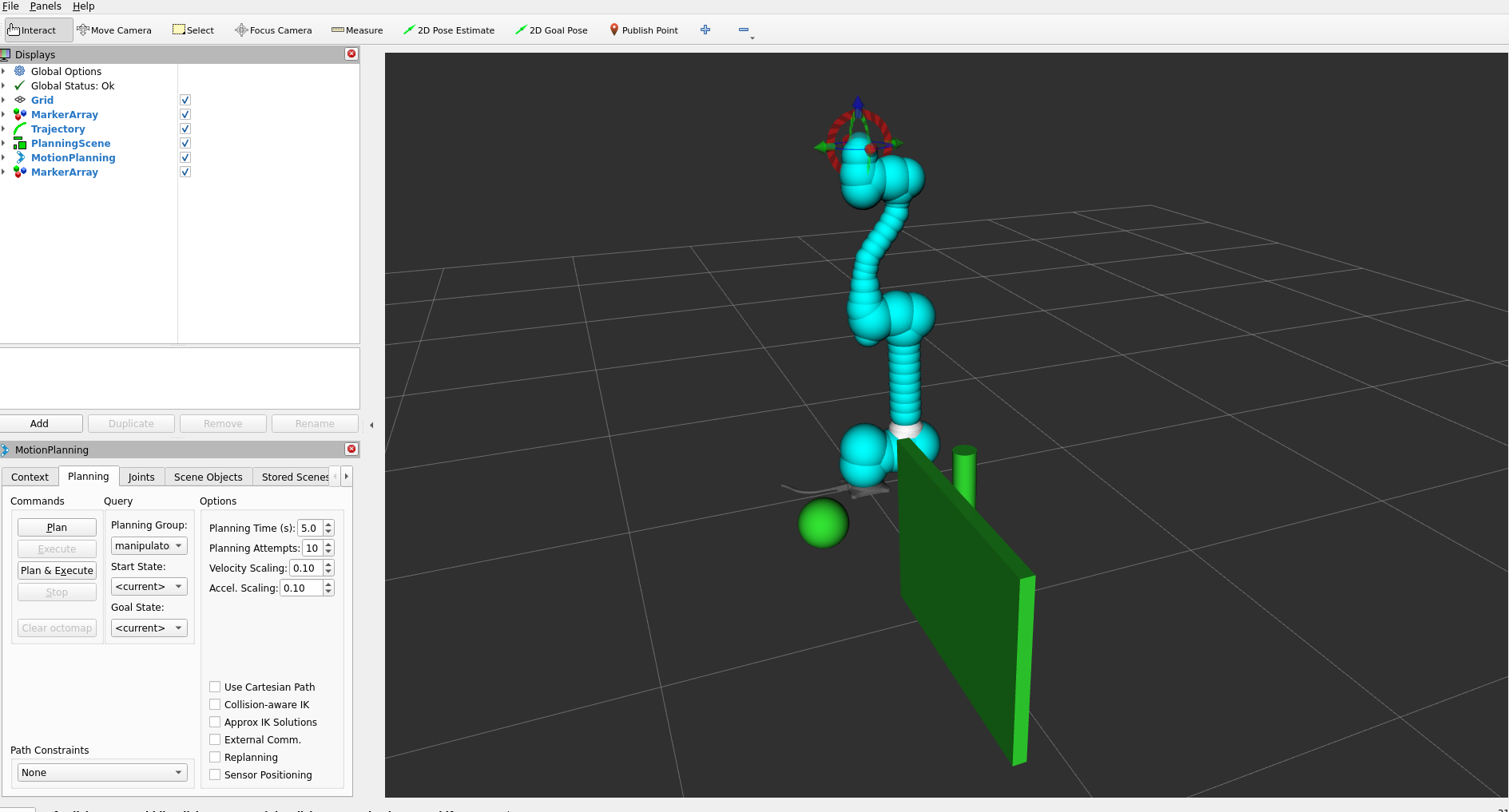

This section launches the full cuMotion-based motion planning and execution pipeline for the Doosan robot in either real hardware mode or virtual simulation mode. In real mode, the system establishes a direct network connection to the physical robot controller using the specified IP address and executes trajectories on the real hardware through the ROS 2 control interface. In virtual mode, the same motion planning pipeline is executed against a simulated robot instance, allowing safe algorithm testing, parameter tuning, and integration validation without physical hardware.

Command

Real Robot Mode

ros2 launch dsr_cumotion start_cumotion.launch.py \
  mode:=real host:=192.168.137.100 gripper:=none

Virtual Robot Mode

ros2 launch dsr_cumotion start_cumotion.launch.py \
  mode:=virtual host:=127.0.0.1 gripper:=none

Gripper Configuration

Arguments

gripper:=none – Robot only
gripper:=vgc10 – OnRobot VGC10
gripper:=2f85 – Robotiq 2F-85

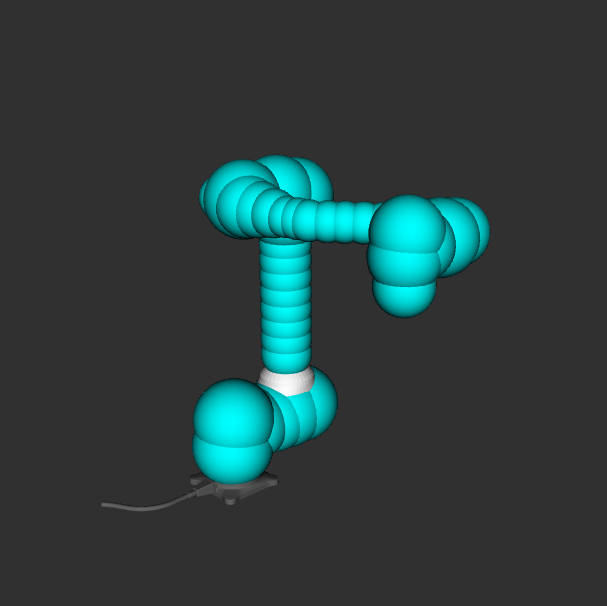

No gripper

../../_images/cumotion_gripper_vgc10.png

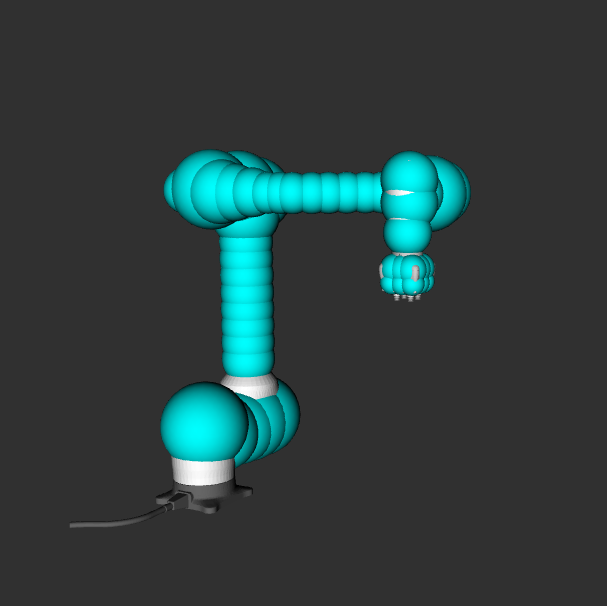

OnRobot VGC10

Robotiq 2F-85

Warning

Robotiq 2F-85 is supported only in virtual mode
VGC10 gripper controller is not launched automatically and must be started separately

cuMotion Launch Arguments

Argument	Default	Description
`mode`	`real`	Selects the execution environment. `real` connects to the physical Doosan robot, while `virtual` runs the Doosan Emulator or simulation environment.
`host`	`127.0.0.1`	Target controller address. Use the real robot controller IP in `real` mode, or the emulator host IP (local emulator uses `127.0.0.1`) in `virtual` mode.
`model`	`m1013`	Robot model selection. Currently, only the M1013 model is supported.
`gripper`	`none`	End-effector configuration. `none` loads the robot only, `vgc10` loads the OnRobot VGC10 model (controller must be started separately), and `2f85` loads the Robotiq 2F-85 model (virtual mode only).
`enable_nvblox`	`false`	Enables real-time 3D environment reconstruction using NVBlox. This option requires high GPU memory and should be disabled on laptops or low-memory GPUs to allow cuMotion-only operation.
`enable_cumotion`	`true`	Enables the cuMotion GPU-accelerated motion planning node.
`enable_attach`	`true`	Enables the object attach/detach interface for pick-and-place operations.
`obstacle`	`true`	Enables static obstacle generation through the MoveIt PlanningScene.
`use_sim_time`	`false`	Selects the time source. `false` uses system wall time (must be used in `real` mode), and `true` enables simulated time for virtual environments.

Note

When specifying the host argument, note that different values are required depending on the operation mode. For virtual mode, the host address must always be fixed to 127.0.0.1. For real mode, it is recommended to use an address in the 192.168.137.x range, which must match the IP configured on the robot’s TP.

cuMotion Planning Demo

The following examples illustrate how cuMotion performs real-time, GPU-accelerated motion planning directly from the MoveIt RViz interface. Simply dragging the TCP marker and selecting Plan and Execute triggers cuMotion to generate and execute an optimized trajectory on the robot.

1. Basic Plan & Execute

This demo shows a straightforward target pose update in RViz.

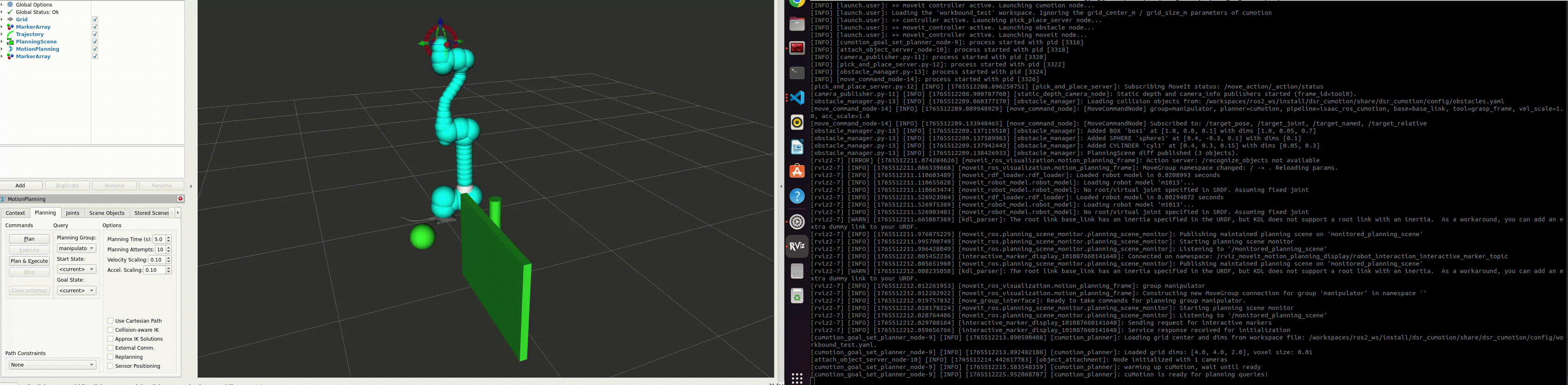

Figure: Basic motion planning with cuMotion from a dragged TCP target.

2. Obstacle-Aware Planning

This example demonstrates how cuMotion dynamically avoids obstacles in the environment. Even with complex constraints, the GPU-accelerated planner quickly searches for a safe, collision-free trajectory.

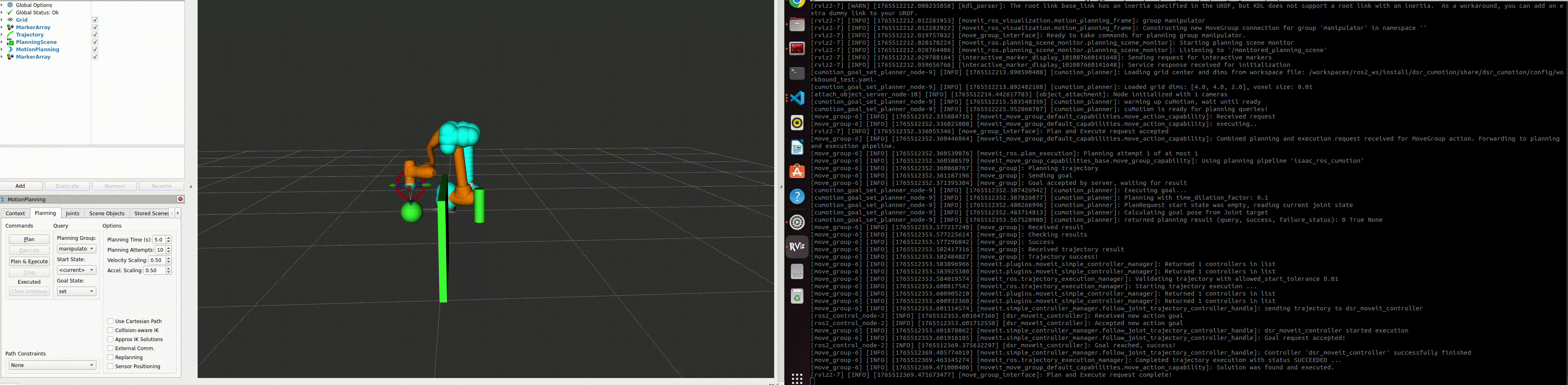

Figure: cuMotion computes an optimized trajectory that safely avoids obstacles.

Motion Command Topics

Pose Command

This command moves the end-effector to an absolute target pose in the robot base frame. It is used when both the target position and orientation need to be explicitly specified.

ros2 topic pub /target_pose dsr_cumotion_msgs/msg/TargetPose "{
  x: 0.35, y: 0.20, z: 0.40,
  rx: 90.0, ry: 0.0, rz: 180.0,
  max_vel_scale: 0.5, max_acc_scale: 0.4
}" --once

TargetPose.msg

This message defines an absolute target TCP pose. The orientation can be represented using either Euler angles or a quaternion.

# TargetPose.msg
# Absolute Cartesian pose command (Euler angles)
# Orientation (either quaternion or euler, one of them can be 0)

float64 x                  # Target position (m)
float64 y
float64 z
float64 rx                 # Target orientation (deg) - Roll
float64 ry                 # Pitch
float64 rz                 # Yaw

# Optional parameters
float64 qx
float64 qy
float64 qz
float64 qw

float64 max_vel_scale      # Velocity scaling (0.0 ~ 1.0, 0 means default)
float64 max_acc_scale      # Acceleration scaling (0.0 ~ 1.0, 0 means default)

Joint Command

This command moves the robot in joint space by directly specifying each joint angle. It is used when only the target joint configuration is required, without defining a Cartesian path.

ros2 topic pub /target_joint dsr_cumotion_msgs/msg/TargetJoint "{
  joints: [0.0, 0.0, 90.0, 0.0, 90.0, 0.0],
  max_vel_scale: 0.6,
  max_acc_scale: 0.4
}" --once

TargetJoint.msg

This message represents a joint-space motion command, where each joint angle is provided as an array.

# TargetJoint.msg
# Joint-space motion command (in radians)

float64[] joints  # Target joint angles (rad)

# Optional parameters
float64 max_vel_scale      # Velocity scaling (0.0 ~ 1.0, 0 means default)
float64 max_acc_scale      # Acceleration scaling (0.0 ~ 1.0, 0 means default)

Named Command

This command moves the robot to a predefined named pose (e.g., home, ready) registered in the NamedExecutor. It is well-suited for repetitive motions and initial pose setup.

ros2 topic pub /target_named dsr_cumotion_msgs/msg/TargetNamed "{
  target_name: 'home',
  max_vel_scale: 0.8,
  max_acc_scale: 0.6
}" --once

TargetNamed.msg

This message sends the name of a predefined target pose as a string.

# TargetNamed.msg
# Named target command (predefined pose name)

string target_name          # Example: "home", "ready"

# Optional parameters
float64 max_vel_scale       # Velocity scaling (0.0 ~ 1.0, 0 means default)
float64 max_acc_scale       # Acceleration scaling (0.0 ~ 1.0, 0 means default)

Relative Command (TCP)

This command performs an incremental (relative) motion based on the current robot state. It is mainly used for fine adjustments (micro adjustments) in either the TCP frame or the base frame.

ros2 topic pub /target_relative dsr_cumotion_msgs/msg/TargetRelative "{
  reference_frame: 'tcp',
  dx: 0.0, dy: 0.00, dz: 0.20,
  drx: 0.0, dry: 0.0, drz: 0.0,
  max_vel_scale: 0.5,
  max_acc_scale: 0.5
}" --once

TargetRelative.msg

This message specifies relative translational (dx, dy, dz) and rotational (drx, dry, drz) increments with respect to the current TCP or base frame.

# TargetRelative.msg
# Relative motion command with respect to the current pose (Euler angles)

string reference_frame     # "base" or "tcp" (default: "tcp")

float64 dx                 # Relative translation (m)
float64 dy
float64 dz
float64 drx                # Relative rotation (deg)
float64 dry
float64 drz

# Optional parameters
float64 max_vel_scale      # Velocity scaling (0.0 ~ 1.0, 0 means default)
float64 max_acc_scale      # Acceleration scaling (0.0 ~ 1.0, 0 means default)

Object Attach / Detach

This node serves as an automatic Pick & Place sequence execution server for the Doosan robot. It performs motion execution using the MoveIt 2 + cuMotion motion planning pipeline, and controls object grasping and releasing in simulation through the Isaac ROS AttachObject action, enabling both attach (grasp) and detach (release) operations.

Attach

ros2 service call /attach_detach_command dsr_cumotion_msgs/srv/PickPlace "{motion_type: 0}"

Detach

ros2 service call /attach_detach_command dsr_cumotion_msgs/srv/PickPlace "{motion_type: 1}"

Obstacle Manager

The obstacle_manager node is a dynamic collision object manager used by both MoveIt 2 and the cuMotion motion planning pipeline. This node loads predefined static and mesh-based obstacles from a YAML configuration file at startup and publishes them to the MoveIt Planning Scene.

At initialization, the node reads the specified YAML file and loads the following obstacle types:

BOX
SPHERE
CYLINDER
MESH

Each collision object contains the following information: - Reference coordinate frame (frame_id) - 3D position - Optional orientation - Geometric dimensions or mesh scale

For MESH objects, the node uses the trimesh library to load a 3D mesh file (e.g., STL) and converts it into a ROS-compatible collision object.

In addition, the node subscribes to the /collision_remove topic, allowing:

Selective removal of a single collision object by ID
Complete removal of all collision objects by publishing an empty string

This enables dynamic environment updates during runtime while maintaining a consistent planning scene for cuMotion and MoveIt 2.

Usage

The default obstacle configuration file is: dsr_cumotion/config/obstacle.yaml

If frame_id is not explicitly specified, it is automatically set to: base_link

Example YAML Configuration

objects:
  - id: {name}
    type: cylinder
    position: [0.0, 0,0, 0.0]
    dimensions: [0.0, 0.0]   # radius, height

  - id: {name}
    type: cylinder
    position: [0.0, 0.0, 0.0]
    dimensions: [0.0, 0.0]   # radius, height

  - id: {name}
    type: cylinder
    position: [0.0, 0.0, 0.0]
    dimensions: [0.0, 0.0]   # radius, height

  - id: {name}
    type: mesh
    mesh_path: "path"         # file path
    position: [0.0, 0.0, 0.0]
    orientation: [0.0, 0.0, 0.0, 1.0]
    scale: [1.0, 1.0, 1.0]

Collision Object Removal

Remove a specific object by ID:

ros2 topic pub /collision_remove std_msgs/msg/String "{data: 'cyl1'}" --once

Remove all collision objects:

ros2 topic pub /collision_remove std_msgs/msg/String "{data: ''}" --once

Launch Integration

The obstacle manager is automatically enabled when launching cuMotion with:

obstacle:=true or false

Example:

ros2 launch dsr_cumotion start_cumotion.launch.py \
  mode:=virtual \
  host:=127.0.0.1 \
  obstacle:=true

Package Overview

This section describes the core packages that form the Doosan + Isaac ROS + cuMotion integrated system, including their roles and key responsibilities within the overall architecture.

`dsr_cumotion`

Role: Core Integration Package for Doosan, MoveIt 2, and cuMotion

The dsr_cumotion package is the central integration layer of the system. It connects the following components into a single execution pipeline:

Doosan ROS 2 hardware interface
MoveIt 2 motion planning framework
NVIDIA cuMotion planner execution
Pick-and-place task server
Planning scene and static obstacle management

`dsr_cumotion_goal_interface`

Role: Motion Command Dispatch Interface

The dsr_cumotion_goal_interface package receives high-level user commands and acts as the command gateway that forwards them to the MoveIt 2 + cuMotion execution pipeline.

Subscribes to the /target_pose topic
Sends motion goals to the MoveIt 2 Action Server
Selects the appropriate execution strategy based on the command type:
- Absolute pose motion
- Joint-space motion
- Named pose motion
- Relative TCP motion

`dsr_cumotion_msgs`

Role: System-Wide Message and Service Interface Definition Package

The dsr_cumotion_msgs package defines all custom ROS 2 messages and service types used throughout the system for motion-level and task-level control.

Defines the unified motion command message that supports:
- Absolute pose commands
- Joint commands
- Named target commands
- Relative TCP commands

Defines the Pick-and-Place task control service interface, including:
- Approach → attach → retreat sequence
- Approach → detach → retreat sequence

Provides the standard API contract between:
- User applications
- Command interface nodes
- Planning and execution subsystems
