Motion Services

Trans 

Translates/rotates the input pose (pos) by delta in the ref coordinate, then returns the result expressed in ref_out.
If ref is DR_TOOL, the result is returned in the input pose’s frame and ref_out is ignored.

Request:

float64[6] pos               # task pos (posx)
float64[6] delta             # delta (posx)
int8       ref     #= 0      # DR_BASE(0), DR_TOOL(1), DR_WORLD(2)
                             # <DR_WORLD is only available in M2.40 or later>
int8       ref_out #= 0      # DR_BASE(0), DR_WORLD(2)
                             # <ref_out is only available in M2.40 or later>

Response:

float64[6] trans_pos         # transformed pos (posx)
bool       success

Note

The ref argument value DR_WORLD is available in M2.40 or later.
The ref_out argument is available in M2.40 or later.

Fkin 

Converts joint angles (float64[6]) to TCP pose (task space) in the specified reference frame.

Request:

float64[6] pos               # joint pos (posj)
int8       ref     #= 0      # DR_BASE(0), DR_WORLD(2)
                             # <ref is only available in M2.40 or later>

Response:

float64[6] conv_posx         # task pos (posx)
bool       success

Note

The ref argument is available in M2.40 or later.

Ikin 

Returns the joint position for the given task pose and solution space (0–7).

Request:

float64[6] pos               # task pos (posx)
int8       sol_space         # solution space : 0 ~ 7
int8       ref     #= 0      # DR_BASE(0), DR_WORLD(2)
                             # <ref is only available in M2.40 or later>

Response:

float64[6] conv_posj         # joint pos (posj)
bool       success

Note

The ref argument is available in M2.40 or later.

SetRefCoord 

Sets the system-wide reference coordinate.

Request:

int8       coord             # DR_BASE(0), DR_TOOL(1), DR_WORLD(2), user coord(101~200)
                             # <DR_WORLD is only available in M2.40 or later>

Response:

bool success

Note

DR_WORLD is available in M2.40 or later.

MoveJoint 

Moves from the current joint position to the target joint position (pos).

Request:

float64[6] pos               # target joint angles [deg]
float64    vel               # velocity [deg/s]
float64    acc               # acceleration [deg/s^2]
float64    time   #= 0.0     # time [s]
float64    radius #= 0.0     # blending radius [mm]
int8       mode   #= 0       # MOVE_MODE_ABSOLUTE=0, MOVE_MODE_RELATIVE=1
int8       blend_type #= 0   # BLENDING_SPEED_TYPE_DUPLICATE=0, BLENDING_SPEED_TYPE_OVERRIDE=1
int8       sync_type  #= 0   # SYNC=0, ASYNC=1

Response:

bool success

Note

If time is specified, the motion is executed time-based and vel/acc are ignored.

MoveJointx 

Moves to a task-space target (pos in posx form) using joint-space motion. Path linearity is not guaranteed. One of 8 robot configurations (solution space) must be specified.

Request:

float64[6] pos               # target task pose (posx)
float64    vel               # velocity [deg/s]
float64    acc               # acceleration [deg/s^2]
float64    time   #= 0.0     # time [s]
float64    radius #= 0.0     # blending radius [mm]
int8       ref               # DR_BASE(0), DR_TOOL(1), DR_WORLD(2)
                             # <DR_WORLD is only available in M2.40 or later>
int8       mode   #= 0       # MOVE_MODE_ABSOLUTE=0, MOVE_MODE_RELATIVE=1
int8       blend_type #= 0   # BLENDING_SPEED_TYPE_DUPLICATE=0, BLENDING_SPEED_TYPE_OVERRIDE=1
int8       sol               # solution space : 0 ~ 7
int8       sync_type  #= 0   # SYNC=0, ASYNC=1

Response:

bool success

Note

If time is specified, the motion is executed time-based and vel/acc are ignored.
Using blending in the preceding motion with relative mode (mode = MOVE_MODE_RELATIVE) causes an error; prefer blending with MoveJoint or MoveLine.
The ref argument value MOVE_REFERENCE_WORLD is available in M2.40 or later.
See MoveJoint and MoveLine for details on blending, radius, and velocity/acceleration behavior.

MoveLine 

Moves along a straight line in task space to the target pose (pos).

Request:

float64[6] pos               # target task pose (posx)
float64[2] vel               # [linear mm/s, angular deg/s]
float64[2] acc               # [linear mm/s^2, angular deg/s^2]
float64    time   #= 0.0     # time [s]
float64    radius #= 0.0     # blending radius [mm]
int8       ref               # DR_BASE(0), DR_TOOL(1), DR_WORLD(2)
                             # <DR_WORLD is only available in M2.40 or later>
int8       mode   #= 0       # MOVE_MODE_ABSOLUTE=0, MOVE_MODE_RELATIVE=1
int8       blend_type #= 0   # BLENDING_SPEED_TYPE_DUPLICATE=0, BLENDING_SPEED_TYPE_OVERRIDE=1
int8       sync_type  #= 0   # SYNC=0, ASYNC=1

Response:

bool success

Note

If vel is provided (e.g., vel=[30, 0]), it specifies the linear velocity; the angular velocity is set proportionally to this linear velocity.
If acc is provided (e.g., acc=[60, 0]), it specifies the linear acceleration; the angular acceleration is set proportionally to this linear acceleration.
If time is specified, the motion is executed time-based and vel/acc are ignored.
The ref argument value MOVE_REFERENCE_WORLD is available in M2.40 or later.

Caution

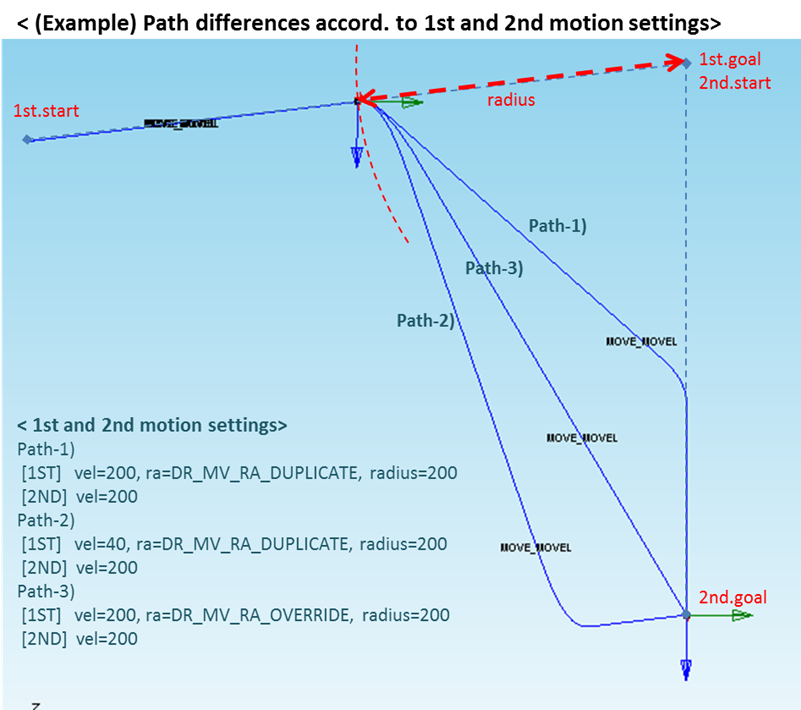

When blending with blend_type = BLENDING_SPEED_TYPE_DUPLICATE and radius > 0, the preceding motion may terminate when the following motion finishes if the preceding motion’s remaining time (based on remaining distance, velocity, and acceleration) exceeds the following motion’s time. Refer to the image for details.

MoveCircle 

Moves along an arc to target pos2 via waypoint pos1, or rotates by a specified angle from the current pose (task space).

Request:

std_msgs/Float64MultiArray[] pos  # two poses: pos1, pos2 (each 6)
float64[2]      vel               # [linear mm/s, angular deg/s]
float64[2]      acc               # [linear mm/s^2, angular deg/s^2]
float64         time   #= 0.0     # time [s]
float64         radius #= 0.0     # blending radius [mm]
int8            ref               # DR_BASE(0), DR_TOOL(1), DR_WORLD(2)
                                  # <DR_WORLD is only available in M2.40 or later>
int8            mode   #= 0       # MOVE_MODE_ABSOLUTE=0, MOVE_MODE_RELATIVE=1
float64         angle1 #= 0.0     # [deg]
float64         angle2 #= 0.0     # [deg]
int8            blend_type #= 0   # BLENDING_SPEED_TYPE_DUPLICATE=0, BLENDING_SPEED_TYPE_OVERRIDE=1
int8            sync_type  #= 0   # SYNC=0, ASYNC=1

Response:

bool success

Note

If vel is provided (e.g., vel=[30, 0]), it specifies the linear velocity; the angular velocity is set proportionally to this linear velocity.
If acc is provided (e.g., acc=[60, 0]), it specifies the linear acceleration; the angular acceleration is set proportionally to this linear acceleration.
If time is specified, the motion is executed time-based and vel/acc are ignored.
The ref argument value MOVE_REFERENCE_WORLD is available in M2.40 or later.
If mode = MOVE_MODE_RELATIVE, pos[0] and pos[1] are relative: pos[0] to the start pose, pos[1] to pos[0].
If one angle is provided, it is the total rotation along the arc. If two angles are provided, angle1 is the constant-velocity angle and angle2 is the accel/decel angle; total rotation is angle1 + 2 × angle2.

Caution

When blending with blend_type = BLENDING_SPEED_TYPE_DUPLICATE and radius > 0, the preceding motion may terminate when the following motion finishes if its remaining time exceeds the following motion’s time.

MoveSplineJoint 

Moves along a spline in joint space through the given waypoints to the final target. The given velocity/acceleration act as maximums; actual accel/decel depends on waypoint placement.

Request:

std_msgs/Float64MultiArray[] pos  # up to 100 joint waypoints [6 each]
int8       pos_cnt                # number of targets
float64[6] vel                    # joint velocity limits [deg/s]
float64[6] acc                    # joint acceleration limits [deg/s^2]
float64    time     #= 0.0        # time [s]
int8       mode     #= 0          # MOVE_MODE_ABSOLUTE=0, MOVE_MODE_RELATIVE=1
int8       sync_type #= 0         # SYNC=0, ASYNC=1

Response:

bool success

Note

If time is specified, the motion is time-based; vel/acc are ignored.
If mode = MOVE_MODE_RELATIVE, each pos in pos_list is defined relative to the previous joint pose. For example, with pos_list = [q1, q2, ..., q(n)]: q1 is relative to the start pose, q(n) is relative to q(n-1).
Online blending of previous/subsequent motions is not supported.

MoveSplineTask 

Moves along a spline in task space through the given waypoints to the final target. The given velocity/acceleration act as maximums; if the constant-velocity option is selected, constant-speed segments are used where applicable.

Request:

std_msgs/Float64MultiArray[] pos  # task-space waypoints
int8            pos_cnt           # number of targets
float64[2]      vel               # [linear mm/s, angular deg/s]
float64[2]      acc               # [linear mm/s^2, angular deg/s^2]
float64         time   #= 0.0     # time [s]
int8            ref               # DR_BASE(0), DR_TOOL(1), DR_WORLD(2)
                                  # <DR_WORLD is only available in M2.40 or later>
int8            mode  #= 0        # MOVE_MODE_ABSOLUTE=0, MOVE_MODE_RELATIVE=1
int8            opt   #= 0        # SPLINE_VELOCITY_OPTION_DEFAULT=0, SPLINE_VELOCITY_OPTION_CONST=1
int8            sync_type #= 0    # SYNC=0, ASYNC=1

Response:

bool success

Note

If vel is provided (e.g., vel=[30, 0]), it specifies the linear velocity; the angular velocity is set proportionally to this linear velocity.
If acc is provided (e.g., acc=[60, 0]), it specifies the linear acceleration; the angular acceleration is set proportionally to this linear acceleration.
If time is specified, the motion is executed time-based and vel/acc are ignored.
The ref argument value MOVE_REFERENCE_WORLD is available in M2.40 or later.
If mode = MOVE_MODE_RELATIVE, each element of pos_list is relative to the previous element.
Online blending of previous/subsequent motions is not supported.

Caution

If opt = SPLINE_VELOCITY_OPTION_CONST (constant-velocity), constant velocity between waypoints may not be achievable. In such cases, motion falls back to variable-velocity mode (SPLINE_VELOCITY_OPTION_DEFAULT).

MoveBlending 

Executes a sequence of line/circle segments at (approximately) constant speed, blending each segment with the specified radius (posb).

Request:

std_msgs/Float64MultiArray[] segment  # up to 50: pos1[6]:pos2[6]:type[1]:radius[1]
int8           pos_cnt                # number of segments
float64[2]     vel                    # [linear mm/s, angular deg/s]
float64[2]     acc                    # [linear mm/s^2, angular deg/s^2]
float64        time    #= 0.0         # time [s]
int8           ref                     # DR_BASE(0), DR_TOOL(1), DR_WORLD(2)
                                       # <DR_WORLD is only available in M2.40 or later>
int8           mode   #= 0             # MOVE_MODE_ABSOLUTE=0, MOVE_MODE_RELATIVE=1
int8           sync_type #= 0          # SYNC=0, ASYNC=1

Response:

bool success

Note

If vel is provided (e.g., vel=[30, 0]), it specifies the linear velocity; the angular velocity is set proportionally to this linear velocity.
If acc is provided (e.g., acc=[60, 0]), it specifies the linear acceleration; the angular acceleration is set proportionally to this linear acceleration.
If time is specified, the motion is executed time-based and vel/acc are ignored.
The ref argument value MOVE_REFERENCE_WORLD is available in M2.40 or later.
If mode = MOVE_MODE_RELATIVE, each pos in posb_list is relative to the previous position.

Caution

Error if the blending radius in posb is 0.
Error for duplicate Line inputs when contiguous Line–Line segments have the same direction.
Error if the blending condition would cause a rapid direction change (to prevent sudden acceleration).
Online blending of previous/subsequent motions is not supported.

MoveSpiral 

Executes a spiral trajectory on the plane perpendicular to the specified axis (task_axis) with axial translation.

Request:

float64    revolution        # total number of turns
float64    max_radius        # final spiral radius [mm]
float64    max_length        # axial travel distance [mm] (negative = negative axis direction)
float64[2] vel               # [linear mm/s, angular deg/s]
float64[2] acc               # [linear mm/s^2, angular deg/s^2]
float64    time    #= 0.0    # total execution time [s]
int8       task_axis         # TASK_AXIS_X=0, TASK_AXIS_Y=1, TASK_AXIS_Z=2
int8       ref     #= 1      # DR_BASE(0), DR_TOOL(1), DR_WORLD(2)
                             # <DR_WORLD is only available in M2.40 or later>
int8       sync_type #= 0    # SYNC=0, ASYNC=1

Response:

bool success

Note

revolution: number of spiral turns.
max_radius: final spiral radius.
max_length: axial travel distance (negative means negative axis direction).
If time is specified, the motion is time-based and vel/acc are ignored.
The ref argument value MOVE_REFERENCE_WORLD is available in M2.40 or later.
Online blending of previous/subsequent motions is not supported.

Caution

An error may be raised for safety if the computed rotational acceleration is too large. Reduce vel, acc, or time.

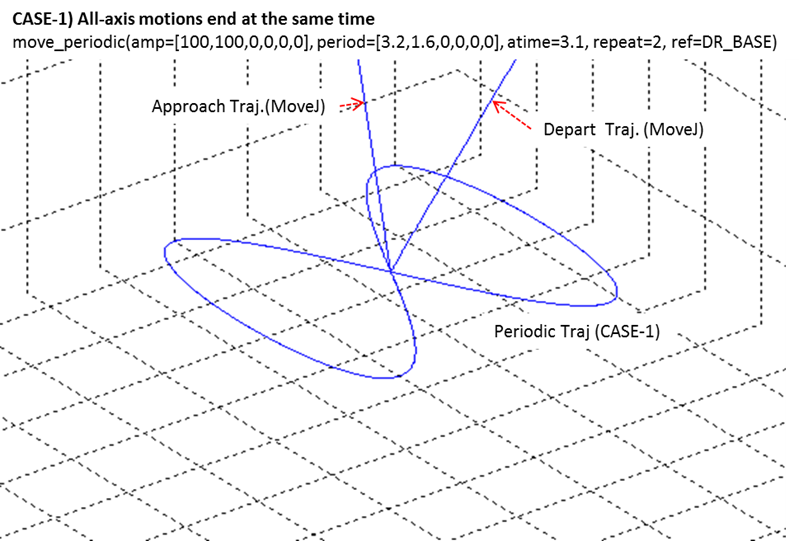

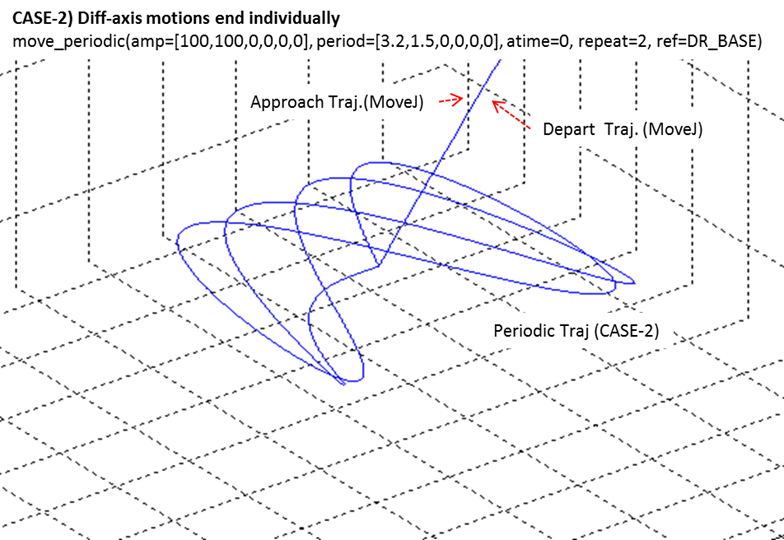

MovePeriodic 

Performs cyclic sine motion on each axis (translation/rotation) of the selected reference frame, as a relative motion from the current pose. Amplitudes and periods set the per-axis motion; accel/decel time and repetition count set timing.

Request:

float64[6] amp               # amplitude per axis [mm]/[deg], motion between -amp and +amp
float64[6] periodic          # period per axis [s]
float64    acc               # accel/decel time [s]
int8       repeat            # repetition count (reference axis drives total duration)
int8       ref    #= 1       # DR_BASE(0), DR_TOOL(1), DR_WORLD(2)
                             # <DR_WORLD is only available in M2.40 or later>
int8       sync_type #= 0    # SYNC=0, ASYNC=1

Response:

bool success

Note

amp: [x, y, z, rx, ry, rz]; axes without motion must be 0.
periodic: per-axis periods (used as “period” in the velocity formula below).
acc: accel/decel time. Effective value is max(acc, max(periodic)/4). Error if acc > total_motion_time / 2.
repeat: set for the reference axis (largest period); other axes’ repetitions are auto-adjusted.
On normal termination, some axes may finish earlier to return to the start pose; decel segments may deviate if axes do not finish simultaneously.
ref: repeated motion reference frame. MOVE_REFERENCE_WORLD is available in M2.40 or later.
Max velocity guidance:

\[v_{\max} \approx \frac{\text{amp} \times 2\pi}{\text{period}}\]

Example: amp = 10 mm, period = 1 s → v_{\max} \approx 62.83 mm/s.
Online blending of previous/subsequent motions is not supported.

Caution

If a maximum velocity error occurs, reduce amplitude or increase period (see formula).

MoveWait 

Waits until the current motion finishes before proceeding to the next command.

Request:

(None)

Response:

bool success

MovePause 

Decelerates and pauses the current motion. Ignored if no motion is in progress.

Request:

(None)

Response:

bool success

MoveResume 

Resumes a paused motion. Ignored if no path motion is in progress.

Request:

(None)

Response:

bool success

MoveStop 

Stops robot motion according to the specified stop mode.

Request:

int32 stop_mode      # DR_QSTOP_STO(0) : Quick stop (Stop Cat. 1 without STO)
                     # DR_QSTOP(1)     : Quick stop (Stop Cat. 2)
                     # DR_SSTO(2)      : Soft Stop
                     # DR_HOLD(3)      : HOLD stop

Response:

bool success

Jog 

Performs jog control on a single axis.

Resulting jog speed = (250 mm/s) × speed [%]

Request:

int8    jog_axis        # 0~5: JOINT1~6, 6~11: TASK X,Y,Z,rx,ry,rz
int8    move_reference  # 0: MOVE_REFERENCE_BASE, 1: MOVE_REFERENCE_TOOL
float64 speed           # jog speed [%] : + forward, 0 stop, - backward

Response:

bool success

JogMulti 

Performs multi-axis jog control.

Multi-axis jog speed = (250 mm/s) / √3 × [unit vector] × speed [%]

Available in controller software 2.50 or later.

Request:

float64[6] jog_axis     # unit vector in task space [Tx, Ty, Tz, Rx, Ry, Rz] : -1.0 ~ +1.0
int8       move_reference  # 0: BASE, 1: TOOL, 2: WORLD
float64    speed        # jog speed [%]

Response:

bool success

CheckMotion 

Returns the status of the currently active motion.

Request:

(None)

Response:

int8  status   # DR_STATE_IDLE(0): no motion
               # DR_STATE_INIT(1): motion being calculated
               # DR_STATE_BUSY(2): motion in operation
bool  success

ChangeOperationSpeed 

Adjusts operation velocity as a percentage (1–100) of the currently set speed. For example, 50 reduces the speed to 50%.

Request:

int8 speed              # 1~100 [%]

Response:

bool success

EnableAlterMotion 

Available in M2.40 or later. Configures how alter_motion() inputs affect the current trajectory. Base cycle is 100 ms; set to n × 100 ms via n. Modes: Accumulation (absolute offset [dX,dY,dZ,dRX,dRY,dRZ]) and Increment (increment added to previous absolute offset). Reference frame via ref. Limits: limit_dpos (max accumulated) and limit_dpos_per (max per-cycle increment); applied values are clamped.

Request:

int32      n                 # cycle multiplier (cycle = n × 100 ms)
int8       mode              # DR_DPOS(0): accumulation, DR_DVEL(1): increment
int8       ref               # DR_BASE(0), DR_TOOL(1), DR_WORLD(2), user coord(101~200)
                             # <ref is only available in M2.40 or later>
float64[2] limit_dpos        # [position mm, orientation deg]
float64[2] limit_dpos_per    # per-cycle limits [position mm, orientation deg]

Response:

bool success

AlterMotion 

Available in M2.40 or later. Applies the altering amount to the motion trajectory when alter is enabled. Input semantics are defined by EnableAlterMotion.

Request:

float64[6] pos               # altering amount [dX,dY,dZ,dRX,dRY,dRZ]

Response:

bool success

Note

alter_motion() can be executed only in a user thread.
Limits are controlled by limit_dpos / limit_dpos_per set in EnableAlterMotion.
Input orientation follows fixed XYZ notation.

Caution

alter_motion() can be executed only in a user thread.

DisableAlterMotion 

Available in M2.40 or later. Deactivates alter motion.

Request:

(None)

Response:

bool success

SetSingularityHandling 

Selects the response policy when potential path deviation due to kinematic singularity is detected.

Auto Avoidance (default) — SINGULARITY_AVOIDANCE_AVOID Reduces instability via automatic avoidance; may reduce path-tracking accuracy.
Path First — SINGULARITY_AVOIDANCE_STOP Prioritizes path: decelerates, warns, then stops if instability is likely.
Velocity Variable — SINGULARITY_AVOIDANCE_VEL Improves path tracking with reduced instability; TCP speed varies in singular regions.

Request:

int8  mode   # DR_AVOID(0): Auto avoidance
             # DR_TASK_STOP(1): Decel / Warn / Stop
             # DR_VAR_VEL(2): Variable velocity

Response:

bool success

MoveHome 

Performs homing by moving in joint space to the mechanical or user-defined home position.

Request:

int8  target   # DR_HOME_TARGET_MECHANIC(0): mechanical home (0,0,0,0,0,0)
               # DR_HOME_TARGET_USER(1): user home

Response:

int8  res      # 0=success, otherwise failure code
bool  success
