MoveIt2 Dynamic YAML Launch Option

Overview

This tutorial introduces an advanced usage of the MoveIt 2 launch system that supports both dynamic and static controller YAML configurations.

This mechanism is especially useful when:

  • Simulating or controlling robots with custom or non-standard DOF (Degrees of Freedom)

  • Deploying to different robot variants without manually maintaining multiple static configuration files

Note

MoveIt 2 integration requires the following minimum Doosan Controller firmware versions:

  • Firmware 2.x: Version 2.12 or higher

  • Firmware 3.x: Version 3.4 or higher

Dynamic vs Static

  • Dynamic YAML Generation
    Automatically generates controller.yaml at runtime based on the robot model’s active and passive joints.

  • Static YAML Usage
    Loads predefined YAML files like dsr_controller2.yaml or dsr_controller2_<model>.yaml from the dsr_controller2/config/ folder.

For example, the P3020 model (5-DOF) typically requires a modified static configuration file. The default dsr_controller2.yaml provided in the package is written for a 6-DOF robot. If you use the P3020 with a static YAML approach, you would need to manually edit a copy of this file so that it matches the 5-DOF configuration.

However, with the dynamic YAML generation feature, you can keep the original dsr_controller2.yaml unchanged. At launch, the system automatically parses the URDF, identifies the robot’s actual number of actuated joints, and generates a temporary YAML file tailored to the 5-DOF P3020 model. This eliminates manual edits while ensuring MoveIt 2 uses the correct controller configuration.



Command

ros2 launch dsr_bringup2 dsr_bringup2_moveit.launch.py [arguments]

Arguments

  • mode: Operation mode (real or virtual)

  • model: Robot model name (e.g., m1013, a0509, p3020)

  • host: IP address of the robot controller

  • dynamic_yaml: Set to true to auto-generate controller.yaml, or false to use static YAML files



Setup and Launch

Dynamic Controller YAML Generation

ros2 launch dsr_bringup2 dsr_bringup2_moveit.launch.py mode:=virtual model:=p3020 host:=127.0.0.1 dynamic_yaml:=true

This will:

  • Parse the robot’s URDF to extract active and passive joints

  • Dynamically create a temporary YAML configuration with only the robot’s actuated joints

  • Apply this configuration to the controller manager without requiring manual file edits

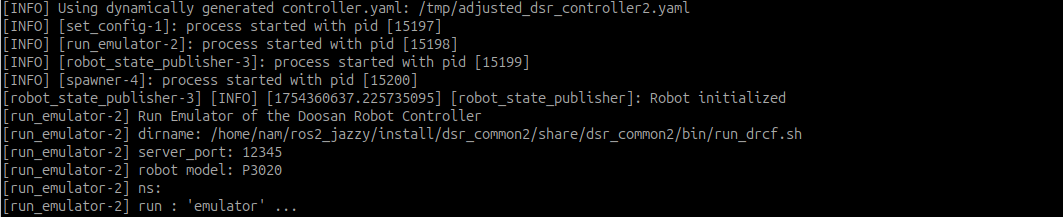

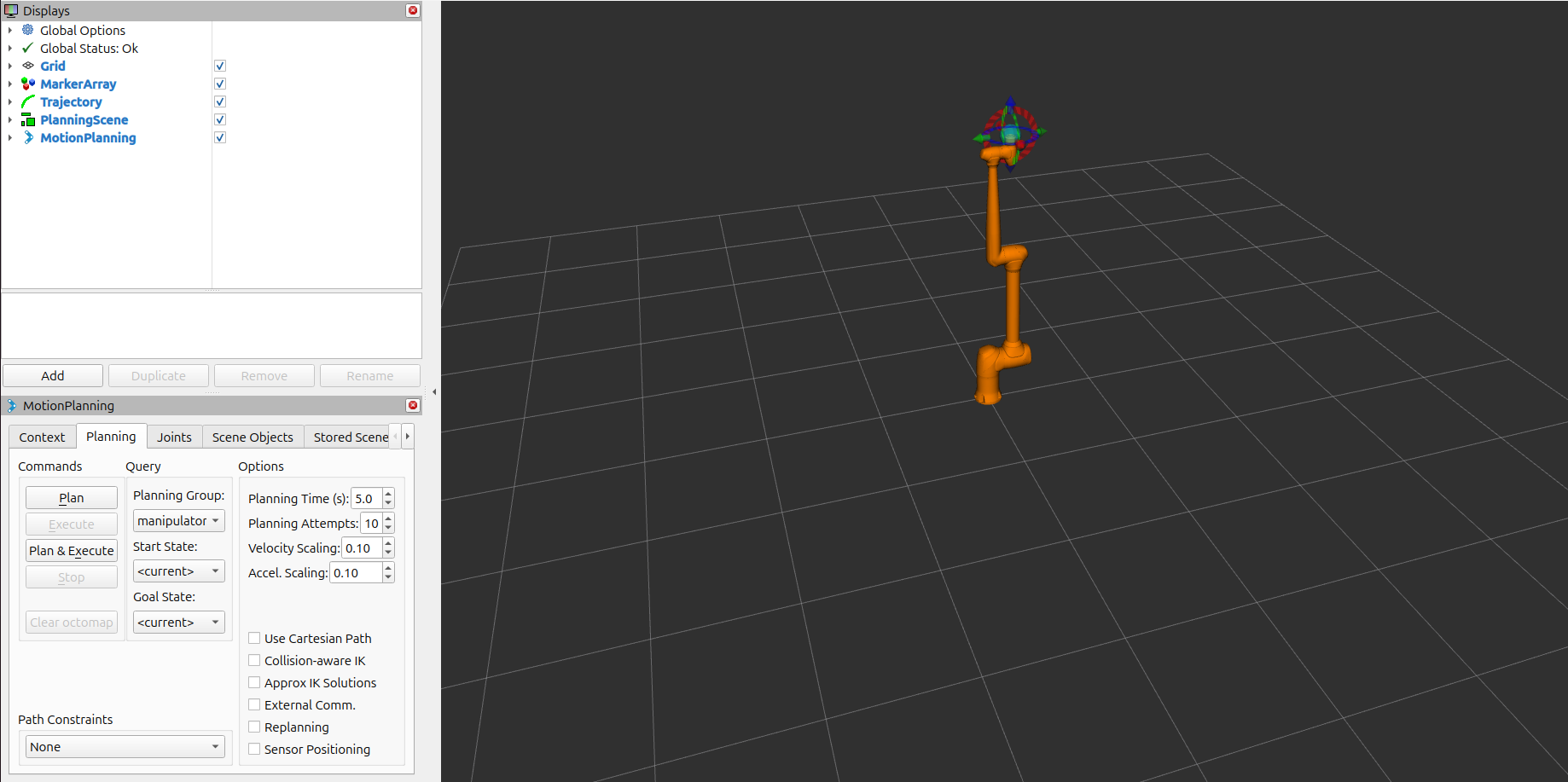

MoveIt2 Advanced Launch Flow MoveIt2 Advanced Launch Log

Static Controller YAML (Model-Specific)

ros2 launch dsr_bringup2 dsr_bringup2_moveit.launch.py mode:=virtual model:=p3020 dynamic_yaml:=false

This will:

  • Search for a file named dsr_controller2_p3020.yaml in the dsr_controller2/config/ folder

  • If not found, fall back to the default dsr_controller2.yaml file

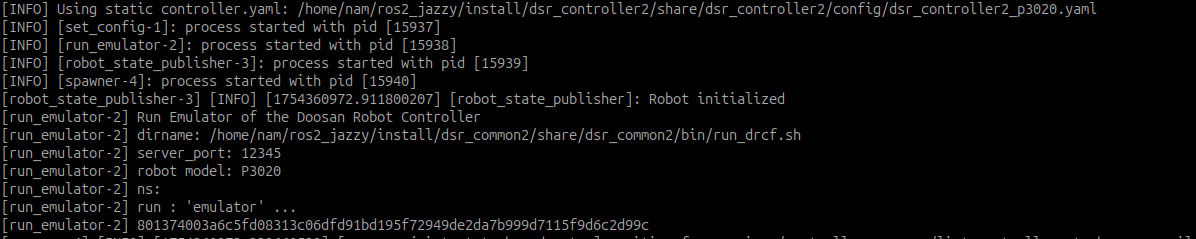

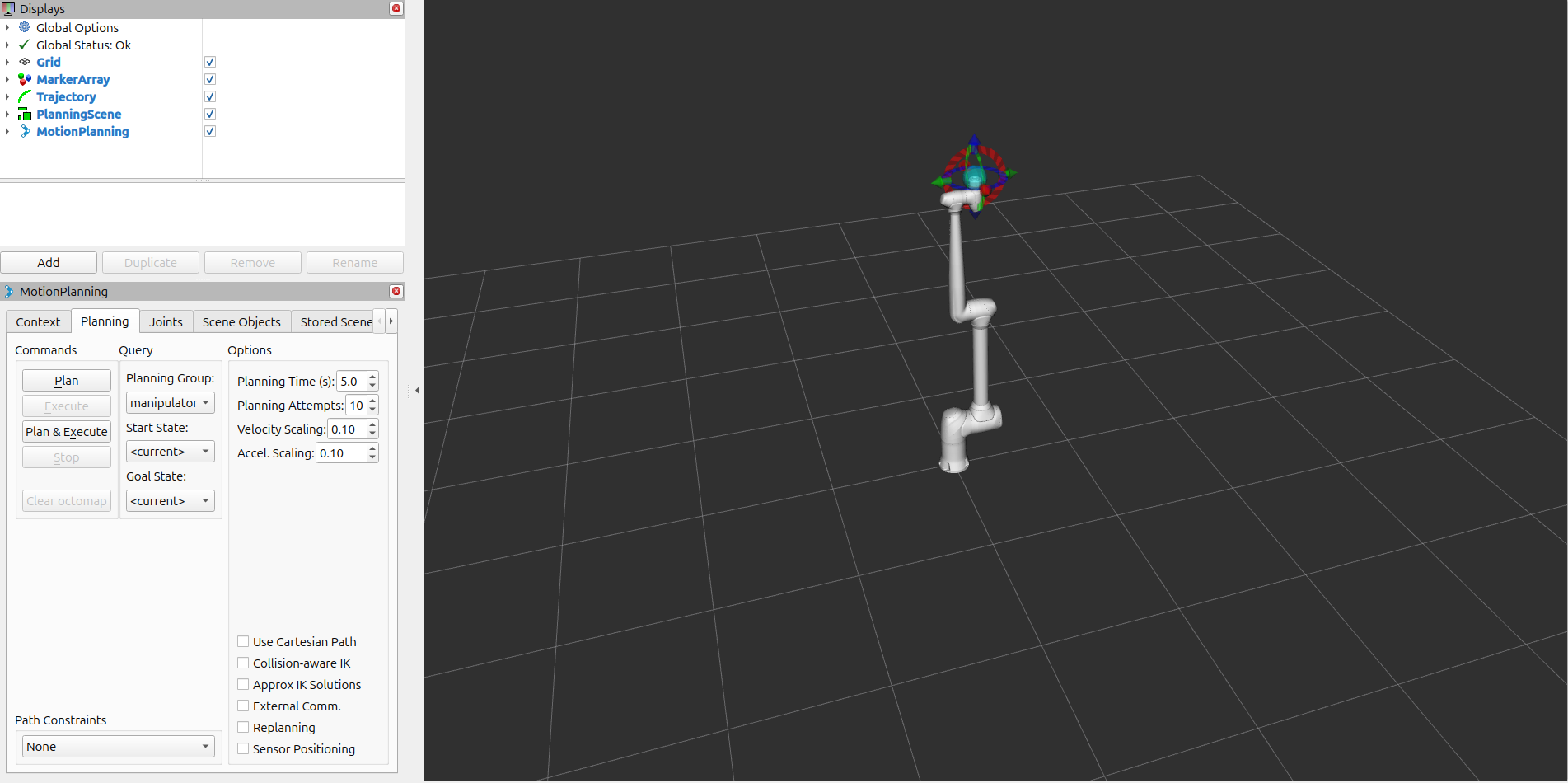

MoveIt2 Static Launch Flow MoveIt2 Static Launch Log

URDF / Xacro Requirements for Dynamic YAML

To ensure the dynamic generator functions correctly, your robot model’s URDF (typically converted from .xacro) must:

  • Clearly define which joints are actuated vs passive (e.g., using <joint type=”fixed”> or a consistent naming convention)

  • Include all joint names in a consistent order

  • Use valid joint types (revolute, prismatic, etc.) that are compatible with ros2_control

Example snippet in .xacro:

<joint name="joint_4" type="fixed">
  <origin xyz="0 -0.89 -0.1731" rpy="1.5708 0 0"/>
  <parent link="link_3"/>
  <child link="link_4"/>
</joint>

This setup allows you to focus on the robot’s mechanical design while letting the system automatically adjust its control configuration for MoveIt 2 planning and execution.

For more detailed setup instructions, including recommended changes to URDF, Xacro macros, ros2_control plugin definitions, and associated YAML files
(e.g., initial_positions.yaml, ros2_controllers.yaml, joint_limits.yaml),

please refer to the complete guide: P3020 MoveIt 2 & ros2_control Integration Guide
